LSL0741-6016LD 150W,180W

150W 180W LO6016

7 Years Warranty                                                                                                                                                                     Save electricity bill. Replace 500W HPS bulb by 180W LED.Save over 60% on electricity bill of lighting.
Maintenance-free. Extremely long life reduces re-lamp frequency. Save labor cost to replace lamps with short lifespan.
Excellent lens design. Advanced and professional light distribution for street lighting. Great uniformity. High efficiency. Output is 18100lm. Efficiency is up to 115lm/w
Enhanced safety. With a superior optical control, LED road lighting fixtures efficiently generates uniform white light, and will enhanced the safety of street.
Durable housing. Rugged die-cast aluminum, scratch and fade resistant.
Excellent appearance. Tempered Glass. Safe and extremely high light transmittance.
Waterproof. IP65.
Eco-Friendly. No lead or mercury.
No Hazardous Emissions. No UV or IR Radiation.
Solid State. Shockproof and vibration proof.

Categories: , .

180W LED Street Light, 17800lm Super Bright, 500W HPS Equivalent, Daylight White, Road Lighting Luminaries

Specification

Part No. LO6016LD30W,40W,50W LO6016LD60W,80W LO6016LD100W,120W LO6016LD150W,180W
Light Source Brand  23
Driver    1
QTY of Light Source 1 1 2 3
System Rated Power 30W,40W,50W 60W,80W 100W,120W 150W,180W
Color Rendering Index ≥80 or 72
Color Temperature (K) 6500 / 5000 / 4000 / 3000 / 2700
Luminous Flux (lm) 3,000~5,750 6,000~9,200 10,000~13,800 15,000~20,700
Luminous Efficiency Whole lamp up to 115 (lm/W)
Luminous Efficiency Light Source up to 130 (lm/W)
Switching Cycles 25,000
Lighting Management System Optical Induction / Automatic Timing / Central Management System
Control System 1-10V
Working Environment (℃) -40~50
IP Rating IP65
IK Protection Grade IK08
Insulation Grade Class I
Color Consistency (SDCM) < 7
Certification CE, C-tick, RoHS, PSE
Warranty 7 Years

Rated Center Beam Intensity: 4858.3 cd

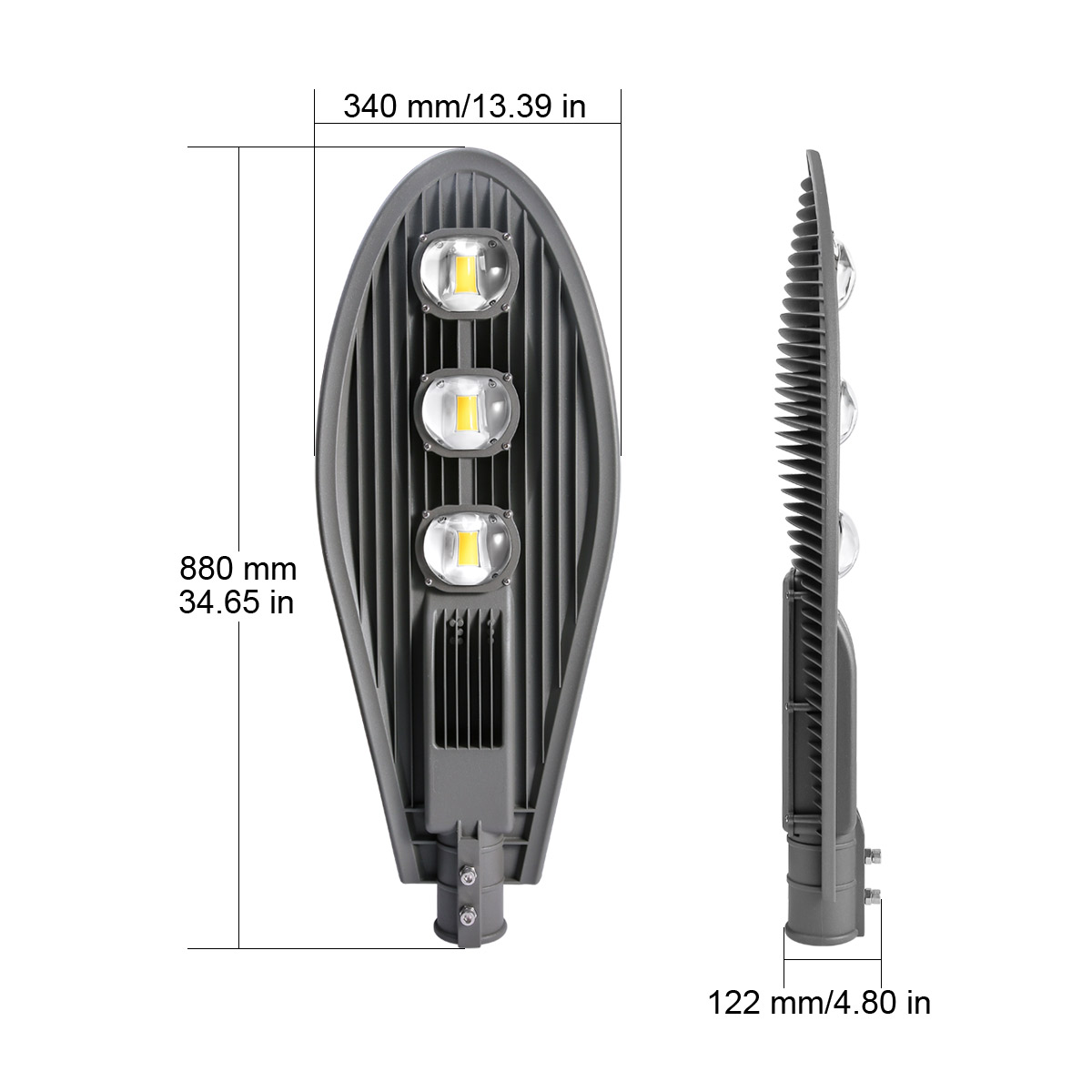

Lamp Pole Size: Φ 60 – 68 mm (can be ajusted by screws, please use M10 hexy key to loose/tighten the screws).

Please refer to this photometric report to select the mounting height of the lamp.
Photometric Report

How to Install
1. Loosen the screws of lamp arm.
2. Connect the lamp wires to the mains supply.
3. Set the lamp arm into the lamp pole and tighten the screws.
Notes: If the dimension of the lamp arm is not compatible with the pole, you need to buy a pole-arm adapter.
